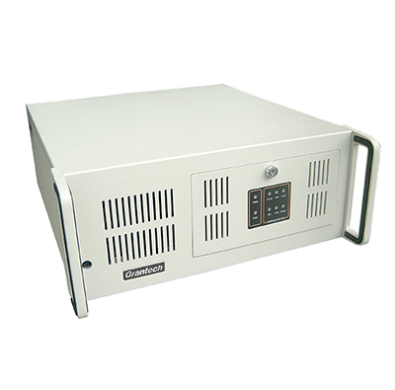

GT6150NM

4U上架式工业机箱, 支持LED电压指示
·  标准19寸 4U上架式工业机箱, 支持多达7个扩展卡
·  支持工业母板/PICMG1.0/1.3长卡
·  支持七个扩展插槽
·  前置2个USB接口,方便操作与维护
·  前面板系统电压LED监测
·  全新工业灰色设计,更符合工业应用色系需求.
·  硬盘拆装更灵活, 无需拆卸硬盘架
·  前面板可锁, 防止未经许可的访问
·  支持标准PS/2电源

产品规格
Color
Grey / White
Material
The Front Panel is SGCC
Disk Drive   Bay
3 x 3.5" and 2 x 5.25”
Cooling
1 × 12CM FAN
Power Supply
Supports ATX PS/2 Power Supply (optional)
Front Panel
1 × Power LED
1 × Hard Disk LED
1 × Power Switch
1 × Reset Switch
2 × USB2.0 Type-A
Rear I/O
2 × DB26 ports (LPT)
6 × COM ports
Expansion
7 x PCI/PCIe expansion slots
Voltage status monitoring
Support power & voltage status detection and indication (LED)
Dimensions (W x D x H)
481.73 × 451.15 × 177.5 (mm)
Environment
Operating Temp & Humidity
0 ~ 60℃/10 ~ 85 % , Non-condensing
Storage Temp &  Humidity
-20~70℃/10~95%, Non-condensing
Shock
Operating Shock :10G
(with 11 ms   duration, half sine wave)
Non-operating Shock: 30G
Vibration
Operating Vibration: 5~500Hz 1Grms
Non-operation   Vibration : 5~500Hz 2Grms

订购信息
Model                          Description
GT6150NM                  4U Rackmount Industrial Chassis
