UFO6366H-J6412
UFO6366H-J6412
Intel J6412无风扇嵌入式工控机，带VGA/HDMI/GPIO/4USB2.0/2USB3.0/EXT
，双网口
· 低功耗、高质感嵌入式无风扇工控机
· 板载英特尔J6412 (2.0GHz, 10W) 处理器
· 全铝新板模具制作，前后六角镙钉固定
· 内部PCB模块化设计，标配抗震组合硬盘架
· 人性化设计：M.2底部开盖、拆装方便
· 6串口设计，符合工业需求
产品规格
Processor | CPU | J6412（Elkhart Lake） |
Frequency | 2.0G/4C/4T | |
TDP | 10W | |
Memory | Frequency | 2 x DDR4 3200MHz |
Capacity | Optional , Up to 32GB | |
Storage | SATA | 1 x 2.5”Hard Disk |
M.2 | 1 x M.2 key B type 2242 with PCIe（with PCIe x 2）+ SATA3.0 | |
Display | Graphics | Intel UHD Graphics for 10th Gen Intel Processors |

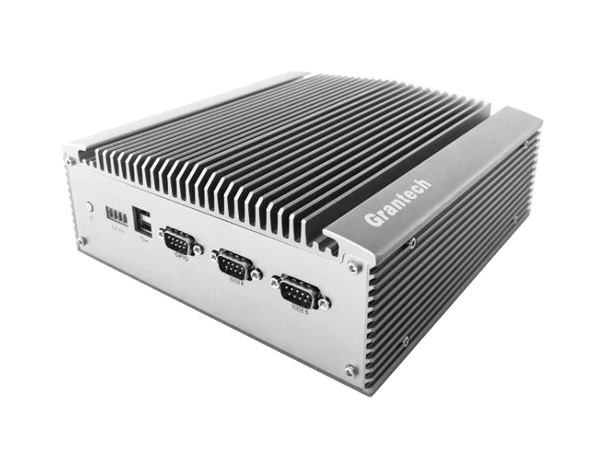

Front I/O | Button/LED | 1 x Power switch(w/LED) |
Serial | 2 x COM(RS232) | |
USB | 2 x USB2.0 | |
GPIO | 4 IN & 4 OUT | |
EXT | 1 x EXT | |

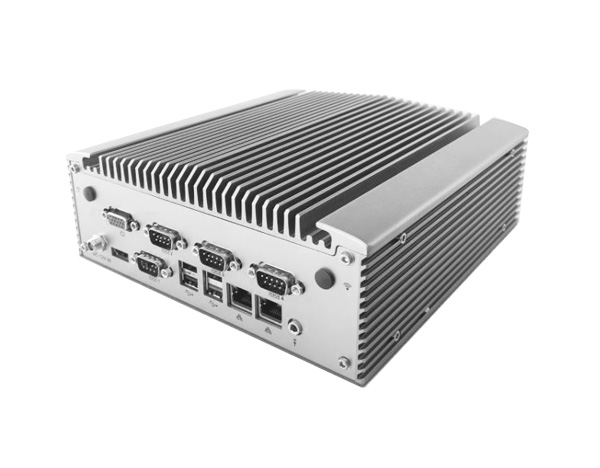

Rear I/O | Power In Connector | 1 x DC12V IN |
Display Port | 1x VGA；1 x HDMI | |
Serial | 4 x COM（COM1 for RS232/422/485）) | |
LAN | 2 x Gigabit LAN | |
USB | 2 x USB2.0 ; 2 x USB3.0 | |
Audio | 1x Line-Out | |
Power Adaptor | Power Input | AC 100~240V/1.5A 50/60Hz |
Power Output | DC 12V/5A | |
Expansion | Mini PCIe | 1 x Mini PCIe (Full-size) |
Dimensions | W:200mm D:205mm H:77mm | |
Environment | Operating Temp & Humidity | -10~70℃/10~90%, Non-Condensing |
Storage Temp & Humidity | -20~80℃/10~90%, Non-Condensing | |
订购信息
Model Description
UFO6366H-J6412 J6412 Embedded fanless System，w/60W Adaptor/6COM/VGA/HDMI/2LAN/GPIO/4USB2.0/2USB3.0/EXT/
Internal PCB design
