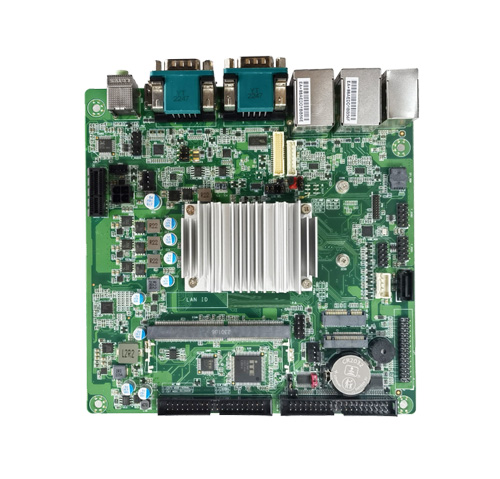

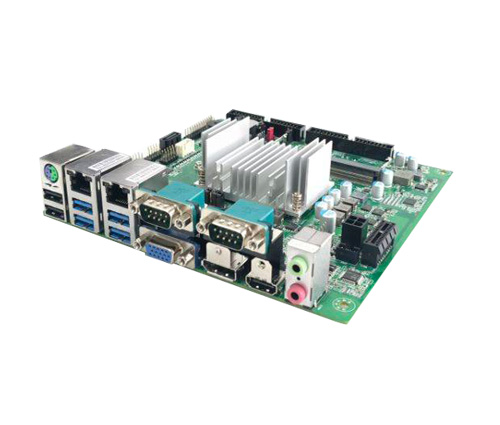

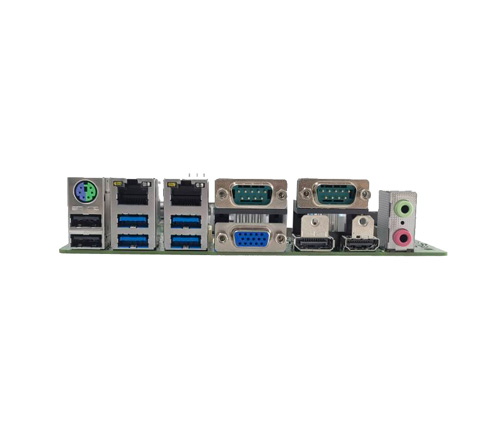

SYS86666VGGA-N100

Intel Alder lake-N SoC N100 Mini-ITX 主板,支持10个串口,双GbE网口
· Intel Alder Lake-N SoC N100 Mini-ITX 主板
· 1 个 260pin SO-DIMM DDR4内存,最大支持16GB
· 双千兆网口
· 1 个 SATA3.0,10 个 串口
· 4 个 USB3.0,6 个 USB2.0 接口
· 1个PCIe x1 扩展槽,2个 M.2,1个TPM
· 支持 VGA/HDMI/LVDS/DP,支持三显示
· DC 12V 电源输入








产品规格
Processor
CPU
Intel Alder Lake-N SoC N100 (4C/4T/2.9/3.4GHz 6W)
Socket
BGA1264
Chipset
SoC
BIOS
AMI UEFI
DRAM
Technology
SO-DIMM DDR4 3200MHz
Capacity
16GB
Socket
260Pin SO-DIMM
Display
Graphics
Intel HD Graphics
Graphics Memory
Share System memory up to 1.7GB SDRAM
HDMI
1Up to 40962304@60Hz
DP
1Up to 40962304@60Hz
VGA
1, Up to 1920 x 1200@60Hz
LVDS
1, Up to 1920 x 1200@60Hz
Mult-Display
Independent displays
LAN
Realtek RTL8111H
Audio
Realtek ALC897
Watchdog

Programmable from 1 to 255 Sec

Storage
SATA

x SATA3.0

M.2
Key-M (2280 SATA/PCIe);Key-E (2230 WIFI/USB)
I/O
Serial
10 COM(COM1/2 for RS232/422/485)
USB
x USB3.0x USB2.0
GPIO
4-In , 4-Out
TPM
1
LPT
1
Expansion Slot
PCIe x1
1(Ver:3.0)
Power
Type
DC 12V
Form Factor
170mm x 170mm
OS
Windows 10
Environment

Operation Temp & Humidity

-10~60℃/10~90%,Non-condensing
Storage Temp & Humidity
-20~80℃/10~90%Non-condensing
Certification
EMC
CE / FCC
订购信息
Model                                  Description
SYS86666VGGA-N100       Intel Alder lake-N SoC N100, w/VGA/HDMI/DP/LVDS/10USB/10COM/DC12V
