SYS86398VGGA
SYS86398VGGA

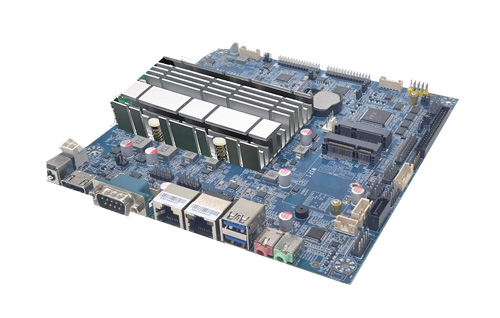

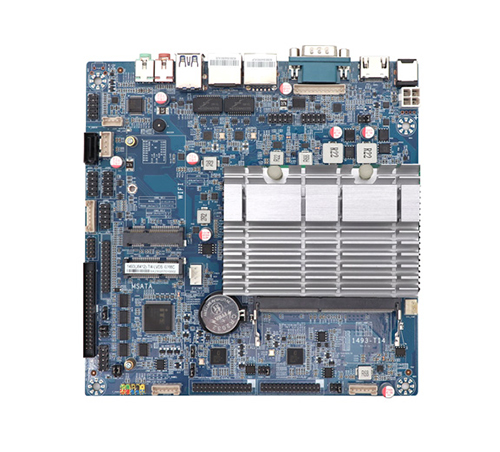

Intel J6412 Mini-ITX 主板，带VGA/HDMI/LVDS，双GbE网口
· Intel J6412 Mini-ITX 主板
· 1 个 260pin SO-DIMM DDR4内存，最大支持32GB
· 双千兆网口
· 1 个 SATA3.0
· 2 个 USB3.0, 6 个 USB2.0 接口, 6 个 串口
· 支持 VGA/HDMI/LVDS, 支持三显
· DC 12V 电源输入
· 1 个 260pin SO-DIMM DDR4内存，最大支持32GB
· 双千兆网口
· 1 个 SATA3.0
· 2 个 USB3.0, 6 个 USB2.0 接口, 6 个 串口
· 支持 VGA/HDMI/LVDS, 支持三显
· DC 12V 电源输入
产品规格
Processor | CPU | Intel J6412 (4C/4T/2.0GHz, TDP 10W ) |
Socket | BGA1493 | |
Chipset | SOC | |
BIOS | AMI UEFI | |
DRAM | Technology | DDR4-2133/2400MHz |
Capacity | 32GB （Max） | |
Socket | 1 x 260 PIN SO-DIMM slot | |
Display | Graphics | Intel UHD Graphics for 10th Gen Intel Processors |
Graphics Memory | Share System memory up to1.7GB SDRAM | |
VGA | 1, Up to 1920 x 1200@60Hz | |
HDMI | 1, Up to 4096 x 2160@30Hz | |
LVDS | 1, Up to 1920 x 1200@60Hz | |
Multiple Display | 3, independent displays | |
LAN | 2 x Realtek RTL8111H | |
Audio | Realtek HD w/Line-out & MIC-in | |
Watchdog | Programmable from 1 to 255 Sec | |
Storage | SATA | 1 x SATA3.0 (6Gb/s) |
| mSATA | 1 | |
| Mini PCIe | 1 (PCIe) | |
| RAID | N/A | |
I/O | Serial | 6 x RS232(COM2 w/RS232/485) |
LPT | N/A | |
USB | 2 x USB3.0 +6 x USB2.0 | |
GPIO | 4-In , 4-Out | |
PS/2 | 1 | |
Expansion Slot | PCIe x16 | N/A |
PCIe x4 | N/A | |
PCI | N/A | |
Power | Type | DC 12V |
Form Factor | 170mm x 170mm | |
Environment | Operation Temp & Humidity | -10~60℃/10~90%,non-condensing |
Storage Temp & Humidity | -20~80℃/10~90%,non-condensing | |
Certification | EMC | CE / FCC |
订购信息
Model Description
SYS86398VGGA Intel J6412, w/VGA/HDMI/LVDS/2GbE/2USB3.0/6USB2.0/6COM/DC12V
