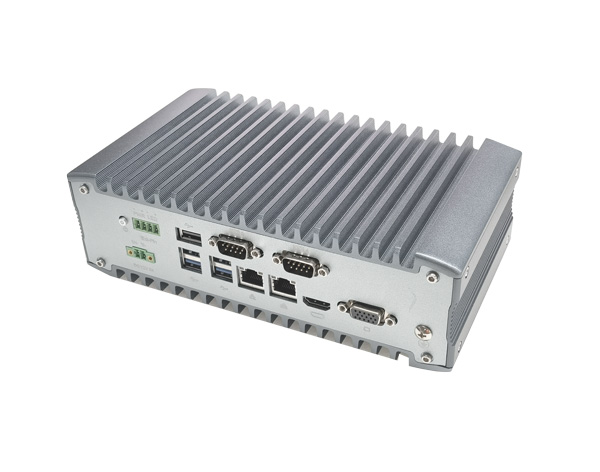

UFO6355N-6287U

酷睿6代i5-6287u 无风扇嵌入式工控机
·  酷睿6代无风扇嵌入式工控机
·  板载i5-6287u CPU(2C/4T/28W)
·  支持1个笔记本DDR4 1866/2133/2400MHz 内存槽位
·  双Intel GbE LAN/VGA/HDMI/6COM/7USB/L-OUT
·  支持1个外接电源开关接口
·  预留双WIFI孔位
·  内部预留1个USB2.0加密狗接口
·  支持DC12~19V供电







产品规格
Processor
CPU

Onboard i5-6287U CPU (2C/4T)

Frequency
3.1GHz up to 3.5GHz
Power consumption
28W
Memory
Technology

1 x SO-DIMM DDR4 1866/2133/2400MHz

Memory capacity
Option, up to 16GB
Storage

SATA

1 x 2.5”SATA

mSATA

1 x mSATA
Graphics

Graphics

Intel HD Graphics
Front I/O

COM

2 x COM

Audio

1 x L_OUT

USB

2 x USB2.0

GPIO

1 x GPIO

WIFI

2 x WIFI ports（by Mini PCIe WIFI module）
Rear I/O
Power/LED

1 x Power SW with LED

1 x external power SW with LED

Power supply

1 x DC12~19V input

Display
1 x VGA ; 1x HDMI
COM
2 x COM (COM1 BIOS for RS232/485/422, COM2 for RS232/485/422)
LAN
2 x Intel Gigabit LAN(i211-AT+i219-LM)

USB

1 x USB2.0 ; 4 x USB3.0

GND

1 x GND
Adapter
Power input

AC 100~240V/1.5A 50/60Hz

Power output

DC 12V/5A

Expansion

Mini PCIe

1 x Mini PCIe (Half-size)

Size

W:220mm D:121.6mm H:70mm

Environment

Operating temp & Humidity

-10~60℃/10~90%, non-condensing

Storage temp & Humidity

-20~80℃/10~90%, non-condensing


订购信息
Model                                  Description
UFO6355N-6287U                 Core 6th Gen i5- 6287U Fanless Embedded PC w/6COM/HDMI/VGA/3USB2.0/4USB3.0/2LAN
